MDP910
Card Payment SoundBox
Leading the new fashion of payment, Redefining SoundBox
Highest Security Standards
MDP910 features PIN input functionality and adheres to POS terminal requirements,Pass PCI 6.X and EMV financial certifications which ensures secure and compliant payment processing for merchants.

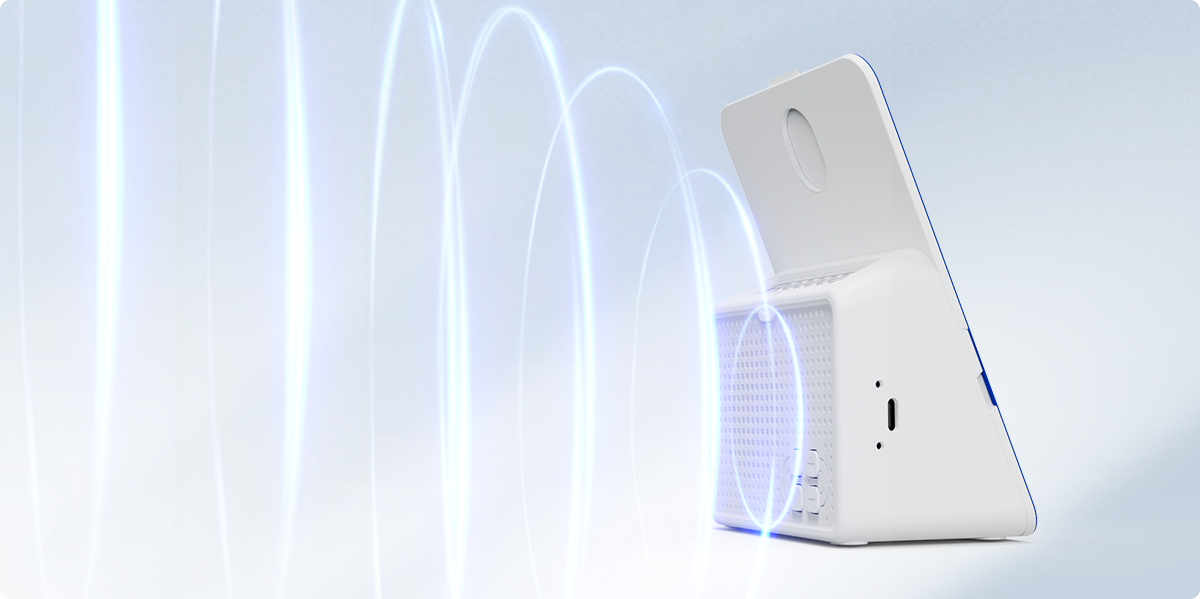

  • Hi-Fi Speaker
    which ensures good sound quality even when the volume is turned up high”The sound of the payment amount is clearer. insertion

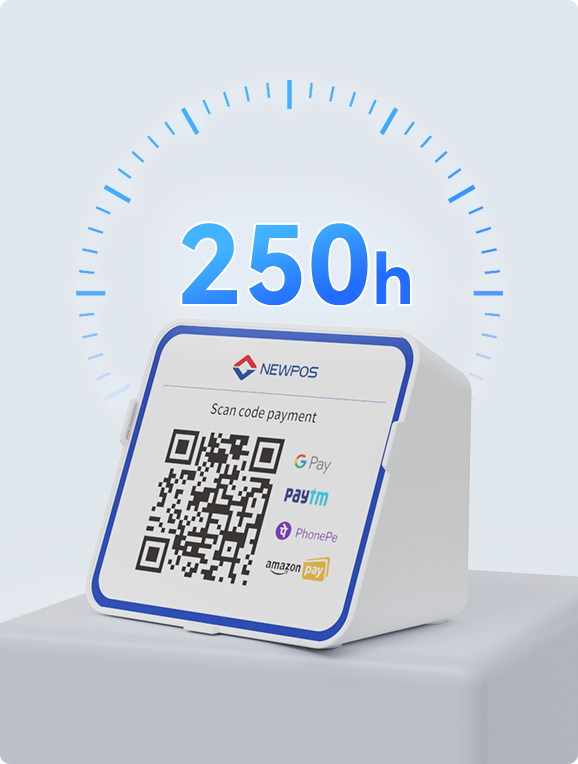

  • Powerful Battery
    3.7V/4000mAh/14.8Wh
    3.7V/5200mAh/19.24Wh (Optional)
  • Color Dual-Screen Display
    Displays(Customer)
    5-inch or 3.5-inch color display supporting Tap on screen and dynamic QR code presentation for seamless transactions
    Displays(Main)
    2.3-inch color display clearly displays transaction amounts, confirmation, status icons
Integrates multiple payment methods
MDP910 accepts payments of IC cards, contactless/NFC and 1D&2D codes.
  • contactless/IC cards
  • NFC
  • 1D&2D codes

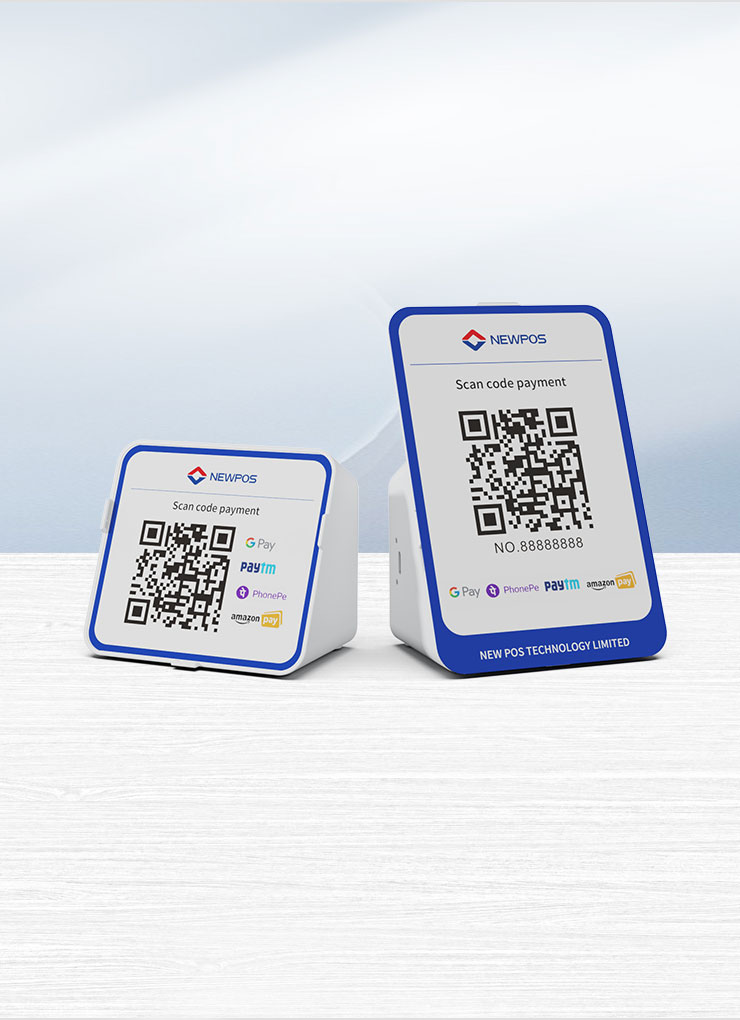

Minimalist Payment Solution for SME
multiple usage modes to flexibly adapt to various checkout scenarios.
Specifications
  • OS
    RTOS
  • Processor
    Cortex A5 500MHz + Secure Processor
  • Memory
    16MB RAM + 24MB Flash
  • Card Readers
    Chip & PlN | Contactless
  • Cameras
    0.3MP Focus,SUPPORT QR Code 1D/2D (Optional)
  • Displays (Customer)
    5'' 480 x 854 Pixel | Color Screen | Secure virtual keypad for PIN entry
  • Displays(Main)
    2.3'' 284 x 76 Pixel | Color Screen
  • Wireless Communication
    2G/4G
    Wi-Fi (802.11b/g/n), 2.4GHz (Optional)
  • Battery
    3.7V/4000mAh/14.8Wh
    3.7V/5200mAh/19.24Wh (Optional)
  • Card Slot
    1 Nano SIM
    eSIM (Optional)
  • Keys / Buttons
    19 Keys: 10 numeric keys | 6 function keys | 1 Power ON/OFF | 1 Volume+ | 1 Volume-
    Adjustable Backlight (Optional)
  • Audio
    1 Speaker
  • Ports
    1 USB Type-C
  • Adapter
    Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A
  • Dimensions
    143.2mm*88mm*145.6mm(L*W*H)
  • Weight
    474g(Battery included)
  • Operating Environment
    Operating Temperature:0°C~50°C (32°F~122°F)
    Relative Humidity: 5%~95% (Non-Condensing)
  • Storage Environment
    Storage Temperature: -20°C~60°C (-4°F~140°F )
    Relative Humidity: 5%~95% (Non-Condensing)
  • Accessories
    1m charging cable
    1.5m data cable (Optional)
  • Certifications
    PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | WPC | Rupay | MasterCard TQM | Google smart TAP
