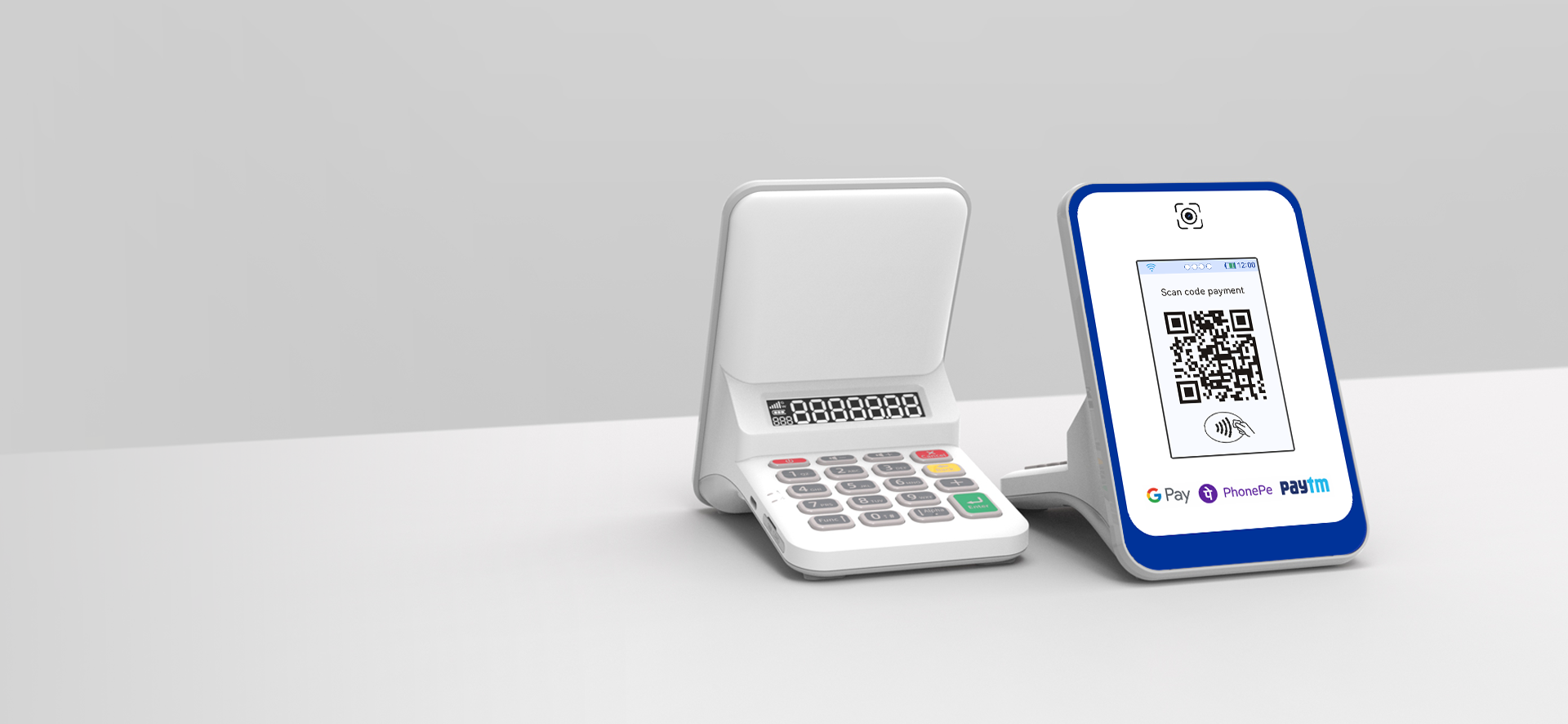

MDP810

Integrated design, More convenient to carry

The code plate and the host are integrated with a lightweight and integrated design, which is suitable for use in all scenarios and is more convenient to carry.

Specifications

OS

RTOS
Processor

Cortex A5 500MHz + Secure Processor
Memory

16MB RAM + 24MB Flash
Card Readers

Contactless
LED Indicator

1 x Three-color state indicator | 1 x Charging indicator
Cameras

0.3MP Focus，SUPPORT QR Code 1D/2D
Displays(Customer)

3.5“ 320 x 480 Pixel | Color Screen
2.4“ 320 x 240 Pixel | Color Screen
Displays(Main)

7-Digit Segment Code Digital Screen
Wireless Communication

2G/4G
Wi-Fi (802.11b/g/n), 2.4GHz & Bluetooth5.0
Battery

3.7V/2000mAh/7.4Wh
Card Slot

1 Mini SIM
eSIM
Keys / Buttons

19 Keys: 10 numeric keys | 6 function keys | 1 Power ON/OFF | 1 Volume+ | 1 Volume- ; Adjustable Backlight
Audio

1 Speaker（3Ω , 3W）
Ports

1 USB Type-C
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A
Dimensions

138mm L×98mm W×135mm H
Weight

292g
Operating Environment

Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing)
Other

Code cards can be customized
Certifications

PCI Non PED 6.x | EMV CL1 | Visa PayWave l MasterCard PayPass | RuPay | American Express | MasterCard TQM | CE
